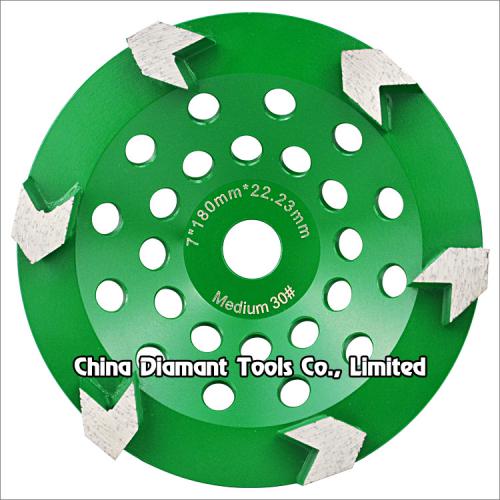

7 inches 180mm diamond grinding cup wheel with arrow segments for concrete
Diameter: 180mm(7")
Bore: 22.23mm(other size M14, 5/8"-11 is available)
Segment: 12mm*6pcs
Bond: medium
Body: steel base
Grit: #30
Welding method: high frequency welded
Dry or wet use
7 inches 180mm diamond grinding cup wheel for concrete medium bond grit 30 arrow segments
The 7 inches 180mm diamond grinding cup wheel medium bond grit 30 with big arrow segments is brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels with 6pcs arrow segments gives a distinct advantage for speed grinding. Compared to other cup wheels with 5mm thickness segments, these 12mm height segments give too much more grinding life.
Code: GCW-C29-180G30M.
Diameter: 180mm(7").
Bore: 22.23mm(other size M14, 5/8"-11 is available).
Segment: 12mm*6pcs.
Bond: medium.
Body: steel base.
Grit: #30.
Welding method: high frequency welded.
Dry or wet use.
May be used on angle grinders or floor grinders.
Water coolant is benefit for longer working life.
The specifications & photos are for reference, other specification may be available as per demand.
